Purpose
The purpose of this blog is to highlight backup solution that can be designed for HANA database on AWS without any overhead of using third-party tool.
AWS Backint Agent for SAP HANA is an SAP-certified backup and restore solution for SAP HANA workloads running on Amazon EC2 instances. AWS Backint Agent backs up your SAP HANA database to Amazon S3 and restores it using SAP management tools, such as SAP HANA Cockpit, SAP HANA Studio, or SQL commands. AWS Backint Agent supports full, incremental, differential, and log backup of SAP HANA databases and catalogs to Amazon S3. There is no cost to use AWS Backint Agent. You only pay for the underlying AWS services you use. AWS Backint Agent for SAP HANA is available in all commercial regions.
AWS Backint Agent runs on an SAP HANA database server, where backups and catalogs are transferred from the SAP HANA database to the AWS Backint Agent. The AWS Backint Agent stores your files in the S3 bucket that is specified in the agent configuration file. To restore your SAP HANA database server, SAP HANA reads the catalog files stored in your S3 bucket using the AWS Backint Agent. It then initiates a request to restore the required files from S3.
Solution Highlights
Supported operating systems
AWS Backint Agent is supported on the following operating systems:
- SUSE Linux Enterprise Server
- SUSE Linux Enterprise Server for SAP
- Red Hat Enterprise Linux for SAP
Supported databases
AWS Backint Agent supports the following databases:
- SAP HANA 1.0 SP12 (single node and multi node)
- SAP HANA 2.0 and later (single node and multi node)
Supported Regions
AWS Backint Agent is available in all commercial Regions.
Use cases
Backup SAP HANA database to Amazon S3
With AWS Backint Agent for SAP HANA, you can backup your business-critical SAP HANA database to Amazon S3. Backup is optimized to provide the best performance while keeping the load on your SAP HANA application under control. This increases the speed at which data can be backed up and restored to and from Amazon S3.
Perform SAP HANA database copies using backup data from Amazon S3
Quickly build new SAP HANA database copies or refresh your existing SAP HANA database using backup data stored in Amazon S3. By integrating with SAP HANA Backint API, AWS Backint Agent is able to utilize the data integrity and reliability of SAP HANA’s built-in backup processes, thereby meeting your Recovery Time Objectives (RTO) and Recovery Point Objectives (RPO).
Build disaster recovery capabilities
With Amazon S3 storage, S3 Cross-Region Replication, and other AWS compute and networking services, you can create Disaster Recovery architectures in order to quickly and easily recover your SAP HANA database from outages caused by natural disasters, system failures, and user errors.

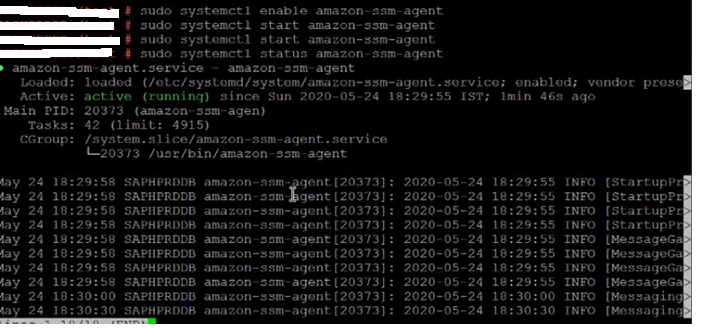

Installation of AWS Backint Agent for SAP HANA
Scheduling SAP HANA Database Backup using HANA Studio / T-Code DB13
T-Code – DB13
Backup get sucessfully completd in S3 Bucket
Benefits of AWS Backint Agent for SAP HANA Backup
Secure
AWS Backint Agent for SAP HANA supports server-side encryption of backups and validates Amazon S3 bucket ownership before backup and restore to and from Amazon S3.
Speed
AWS Backint Agent for SAP HANA is optimized to utilize the maximum Elastic Block Storage (EBS) throughput and network bandwidth available to Amazon S3 from your EC2 instance. This increases the speed at which your SAP HANA database can be backed up or restored to and from Amazon S3, improving your Recovery Time Objective (RTO).
Simplicity
AWS Backint Agent directly backs up your SAP HANA database to Amazon S3. This prevents the need to create custom scripts to manually copy your SAP HANA backup files to and from S3.
Reliability
AWS Backint Agent integrates with SAP HANA Backint API, which has built-in validations to provide reliable backup and restore capabilities.
Lower Recovery Point Objective (RPO)
AWS Backint Agent for SAP HANA can automatically backup your SAP HANA database log files to Amazon S3 at regular intervals to meet your RPO requirements.
